OP-226T
OLAT
8443192290
1. Product Overview

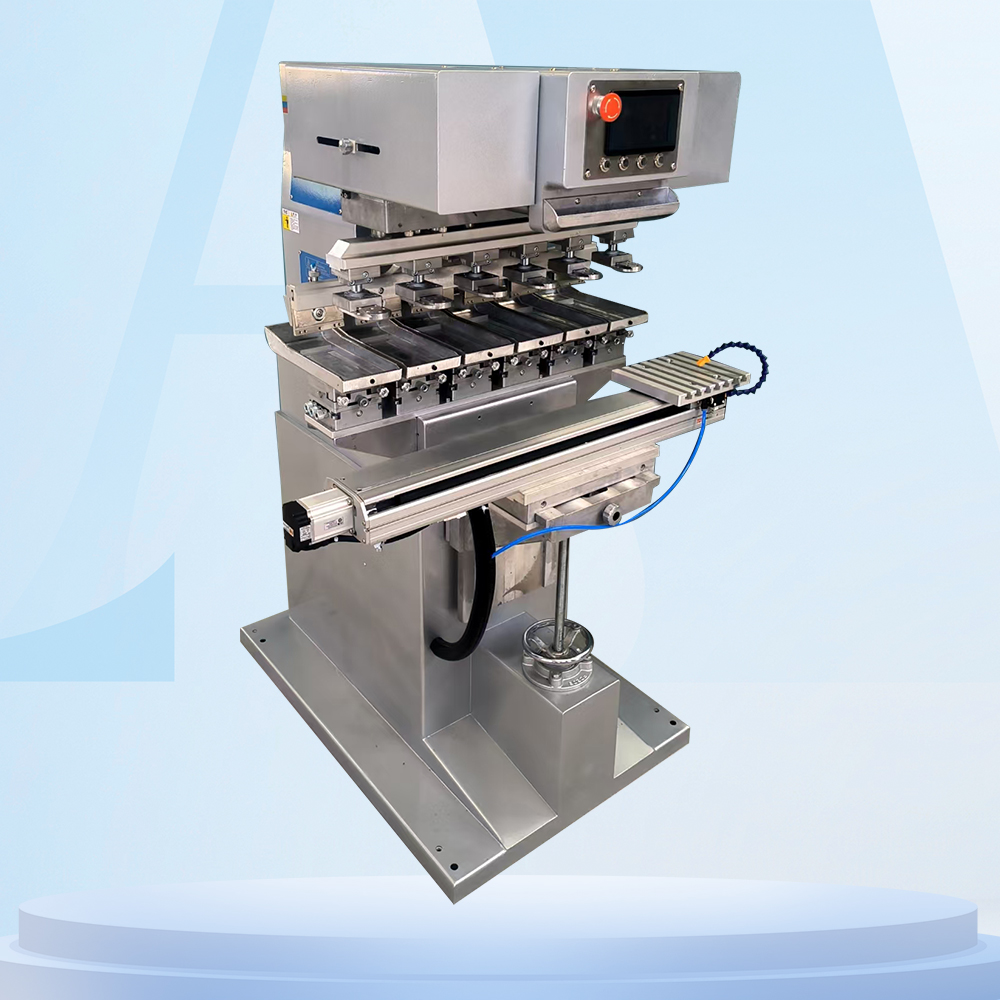

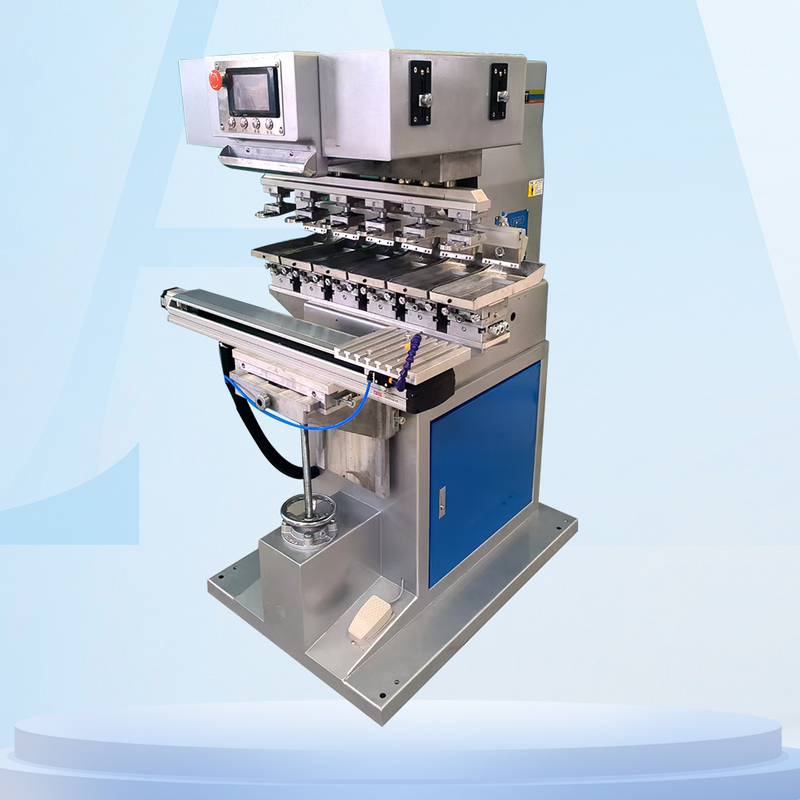

The 6-Color Servo Linear Pad Printing Machine is a state-of-the-art solution designed for high-precision, high-efficiency multicolor printing. Engineered with advanced servo-driven linear transfer technology, it guarantees exceptional registration accuracy and vibrant color output for the most complex graphics. This machine sets a new standard for productivity and reliability in applications requiring up to six colors, making it the ideal choice for demanding industries such as cosmetics, automotive, and premium consumer electronics.
Servo-Driven Linear Transfer System:
Description: Utilizes high-precision servo motors to control the linear movement between all six printing stations.
Benefits: Delivers unparalleled positioning accuracy and repeatability for perfect color registration. Movement is smoother, faster, and more programmable than traditional pneumatic systems.
Six Independent Printing Stations:
Description: Configured in an efficient in-line layout, allowing for sequential application of up to six colors or coatings.
Benefits: Enables complete multicolor graphics to be applied in a single, automated cycle, dramatically increasing output and reducing labor costs.
Precision Open Ink Tray System (Optional):
Description: Each station can be equipped with a open ink tray.
Benefits: Prevents solvent evaporation, maintains consistent ink viscosity, reduces contamination, and ensures a cleaner, more environmentally friendly workspace.
User-Friendly PLC Control with HMI:
Description: Operated via an intuitive touchscreen interface and a programmable logic controller (PLC).
Benefits: Allows for easy storage of hundreds of product recipes, precise adjustment of all printing parameters (speed, pressure, stroke), and provides real-time monitoring and diagnostics.
Robust and Stable Construction:
Description: Built with a high-rigidity steel frame and precision-machined components.
Benefits: Minimizes vibration, ensuring long-term mechanical stability and consistent print quality over continuous operation.
High-Speed Operation:
Description: The combination of servo drives and linear transfer enables significantly faster cycle times compared to shuttle-type machines.
Benefits: Maximizes production throughput, delivering a superior return on investment.
Ideal for printing high-quality, complex multicolor designs on:
Cosmetics Packaging: Lipstick cases, compact powder boxes, perfume bottles.
Electronic Components: Switches, keypads, smartphone casings, control panels.
Automotive Parts: Interior trim, dashboard icons, control knobs.
Medical Device Housings: Syringes, instrument casings.
Premium Promotional Goods: Pens, lighters, high-end USB drives.
| Model | OP-226T |
| Print Plate Stander Size(mm ) : | 200*100 |
| Machine stroke(mm)(front-back) : | 225 |
| Maximum Printing Speed (Cycles/hour ): | 650 |
| Power Requirement : | 220V/50HZ/50W |
| Pressure Requirement(bar) : | 6-7 |
| Machine Weight(kg) : | 250 |
| Machine size (mm): | 850*1270*1500 |
