OP-122T
OLAT
8443140000

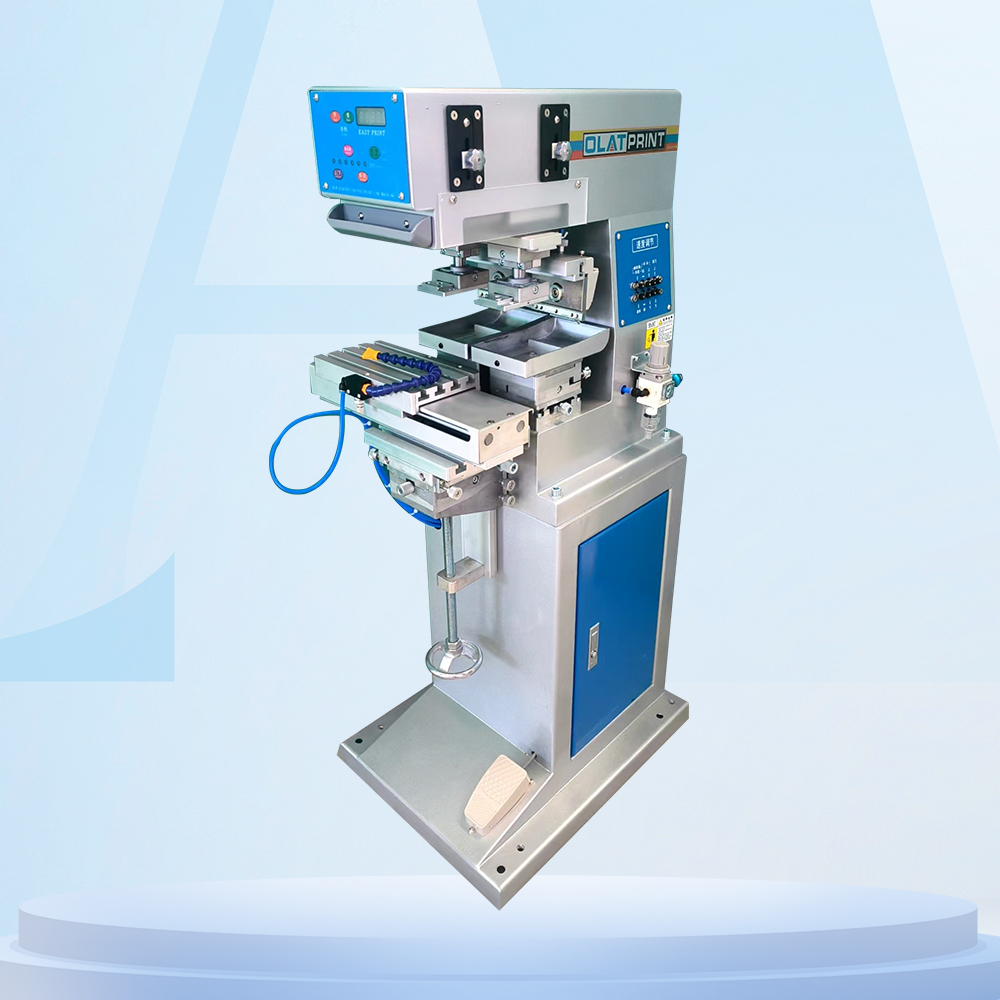

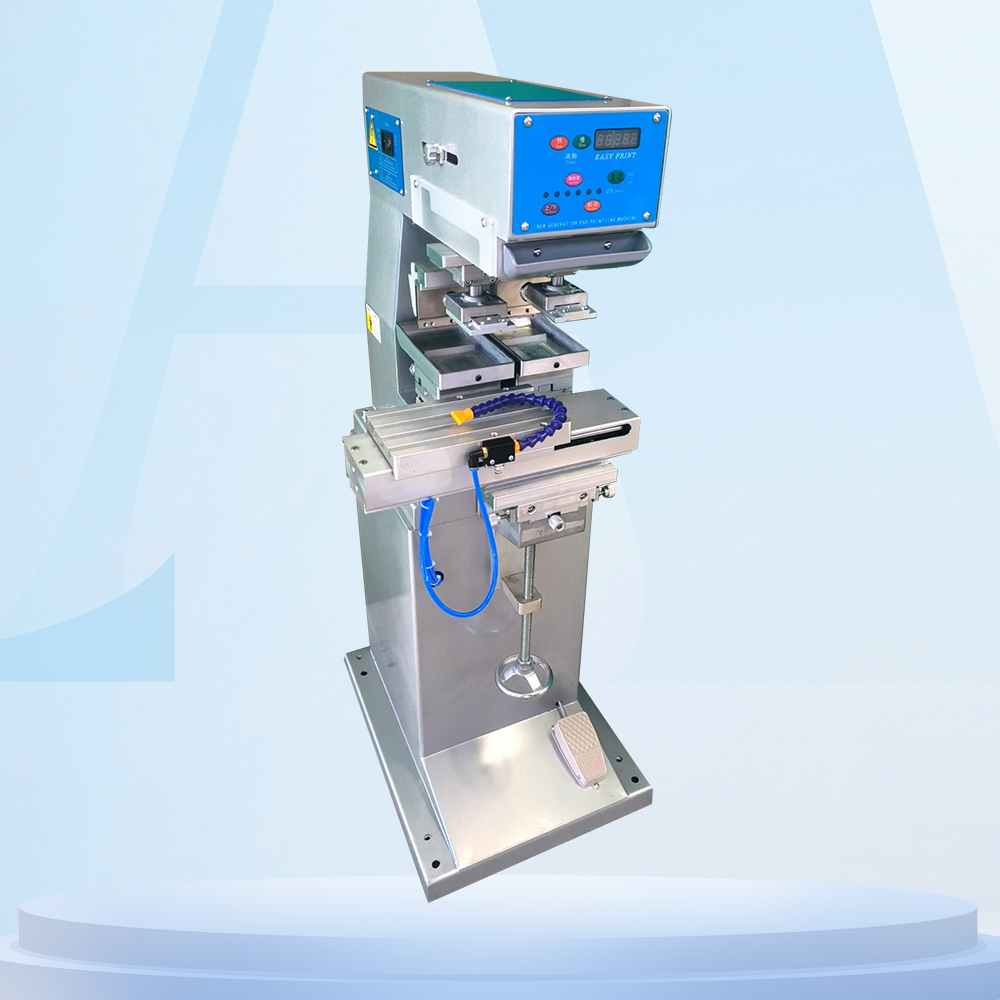

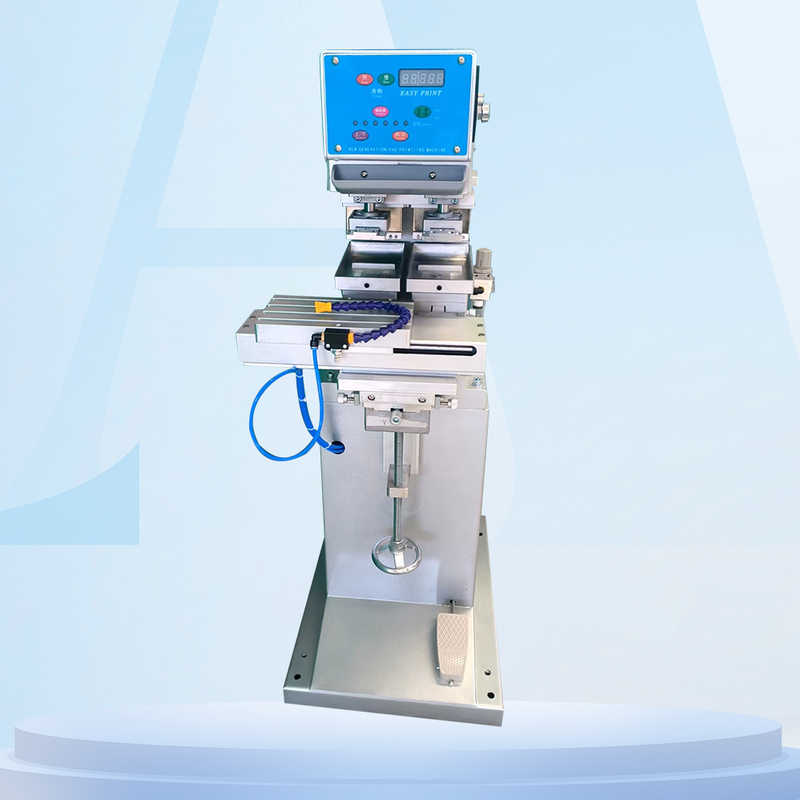

The 2-Color Pneumatic Shuttle Pad Printing Machine is a robust and cost-effective solution for high-quality two-color imprinting. Engineered with a fully pneumatic operating system, it guarantees reliable performance, durability, and ease of maintenance. This machine is perfectly suited for applying logos, text, and graphics onto a wide array of products, from plastic components and electronic parts to promotional items.
Efficient Two-Color Printing: The pneumatic shuttle system seamlessly transfers the printing jig between two independent printing stations in a single automated cycle, significantly boosting productivity for dual-color applications.
Fully Pneumatic Operation: All critical movements—including the shuttle indexing, vertical (up/down), and horizontal (forward/backward) motions of the printing platform—are powered by reliable pneumatic cylinders. This ensures strong, fast, and consistent performance with a simple, maintenance-friendly design.
Reliable & Consistent Output: The all-pneumatic drive system provides exceptional stability and repeatability, ensuring consistent print quality shift after shift, even in demanding production environments.
User-Friendly Control: The machine is operated via an intuitive control panel.
Durable Construction: Built with a heavy-duty steel frame and high-quality components, the machine is designed for long-term reliability and minimal downtime.
Versatile Applications: Capable of printing on flat, curved, and irregular surfaces, it is ideal for a wide range of materials, making it a versatile asset for various industries.
Printing Colors: 2 Colors
Drive System: Fully Pneumatic (Shuttle, Up/Down, Forward/Backward)
Printing Plate: 100mm x 100mm
Control System: Manual Control Panel
Air Pressure Requirement: 5bar
Power Supply: 220V/50HZ/50W
Machine Weight(kg) : 75
Machine Size(mm): 560*450*1200
This machine is ideal for printing on:
Plastic parts and housings
Consumer electronics components
Pens, keychains, and USB drives
Toys and stationery
Automotive switches and buttons
