Pad printing, also called tampography or tampo printing, is an indirect offset (gravure) printing process where a silicon pad takes a 2-D image from a laser engraved (etched) printing plate (also called cliché) and transfers it to a 3-D object.

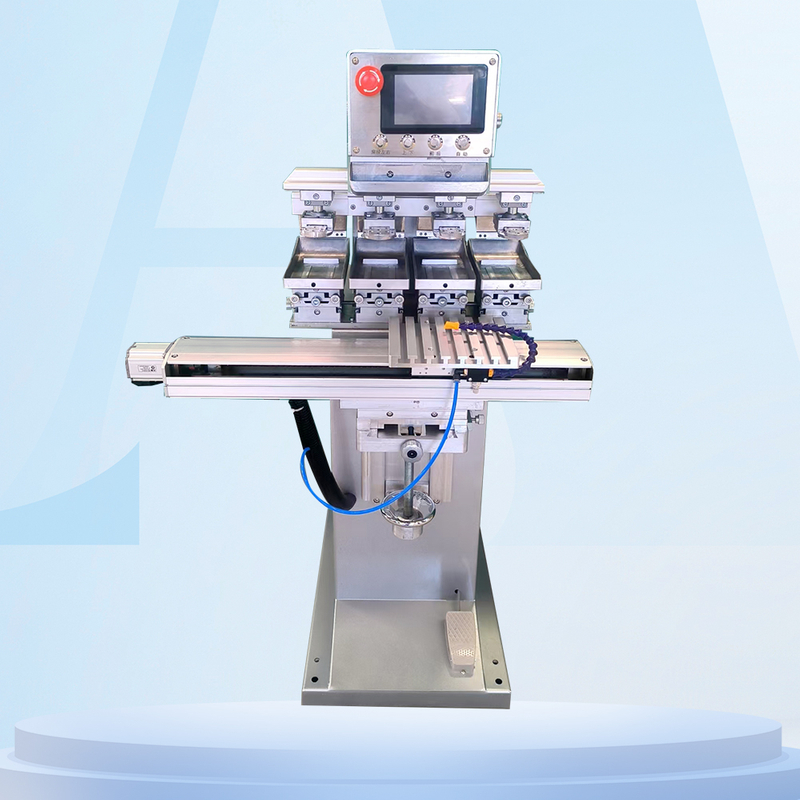

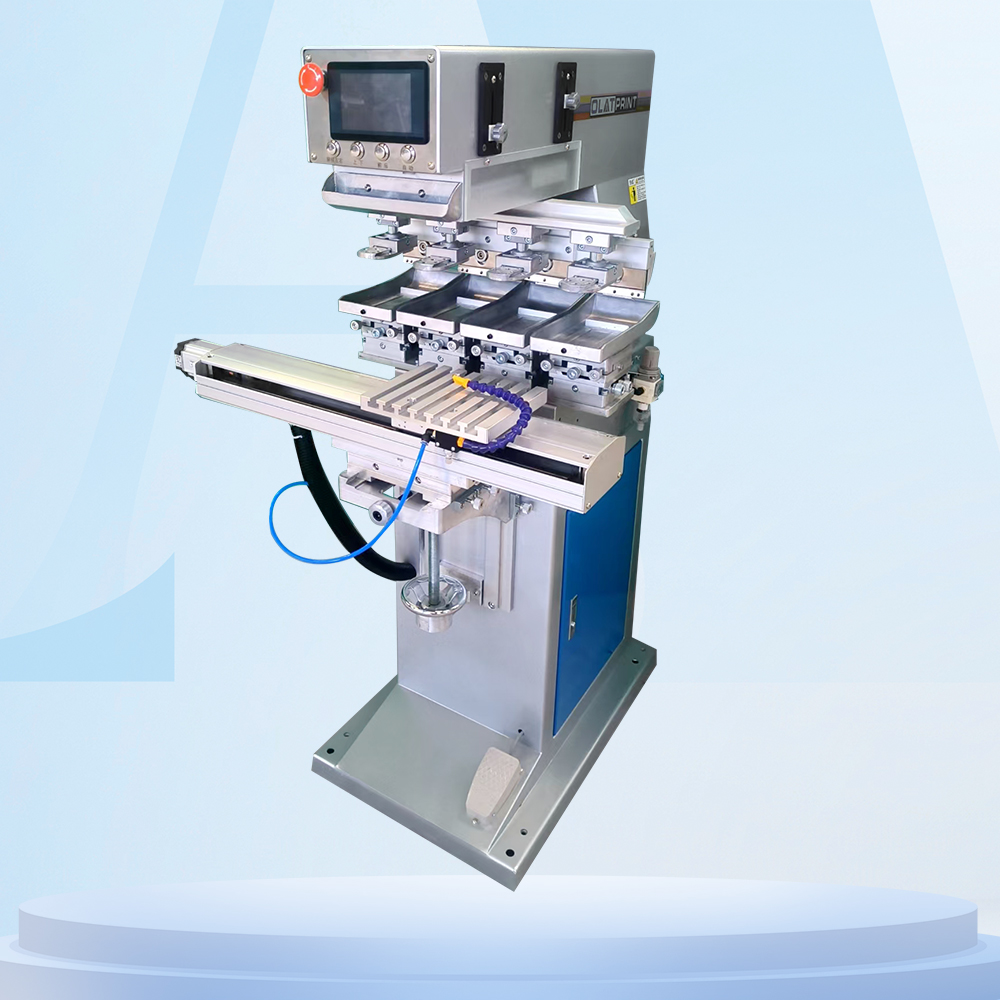

OP--174T four color pad printer with servo shuttle,open ink tray( inkwell)
Product Overview
The 4-Color Servo Shuttle Pad Printing Machine represents the pinnacle of efficiency and precision for high-quality, multi-color imprinting applications. Designed with an integrated servo-driven shuttle system and precision open ink tray supply, this machine ensures exceptional registration accuracy, vibrant color output, and remarkably stable performance for high-volume production environments. The core printing motions are managed by advanced servo technology, while pneumatic cylinders reliably handle all material handling movements (up, down, forward, backward), creating a perfect synergy of speed, power, and precision.
Key Features & Benefits
Servo-Driven Shuttle System:
The indexing movement between color stations is controlled by a high-precision servo motor.
Guarantees extremely accurate and repeatable color registration, eliminates the positional drift common in purely pneumatic systems, and allows for easy adjustment of shuttle stroke and position via the touchscreen HMI.
Four Independent Printing Stations:
Features four dedicated printing units arranged in a linear shuttle configuration.
Enables simultaneous application of up to four distinct colors or coatings in a single, automated cycle, dramatically increasing output for complex designs.
Pneumatic Actuation for Material Handling:
All material loading/unloading and positioning movements – specifically the vertical (up/down) and horizontal (forward/backward) motions of the printing platform or jig – are powered by reliable pneumatic cylinders.
Provides robust, fast, and cost-effective force for part clamping and positioning. The simple pneumatic design ensures durability and easy maintenance.
User-Friendly PLC Control System:
The machine is operated via an intuitive touchscreen Human-Machine Interface (HMI) and a Programmable Logic Controller (PLC).
Allows for storage of multiple product recipes, easy setup of printing parameters (speed, delay, stroke), and provides real-time diagnostics for simplified operation and troubleshooting.
Rigid & Stable Machine Construction:
Built with a heavy-duty steel frame and precision-machined components.
Absorbs vibrations and ensures long-term structural integrity, which is critical for maintaining consistent print quality over years of operation.
Target Applications
Ideal for printing multi-color logos, graphics, and indicators on a wide range of materials and components, including:
Consumer Electronics: Mobile phone cases, headphones, chargers.
Promotional Products: Pens, USB drives, keychains.
Automotive Parts: Switches, buttons, interior trim.
Medical Equipment: Syringes, device housings.
Toys and Stationery.
| Model | OP-174T |
| Print Plate Stander Size(mm ) : | 150*100 |
| Machine stroke(front-to-back)(mm): | 171 |
| Maximum Printing Speed (Cycles/hour ): | 900 |
| Power Requirement : | 220V/50HZ/50W |
| Pressure Requirement(bar) : | 6 |
| Machine Weight(kg) : | 145 |
| Machine size (mm): | 950*650*1350 |
