Views: 0 Author: Site Editor Publish Time: 2026-02-03 Origin: Site

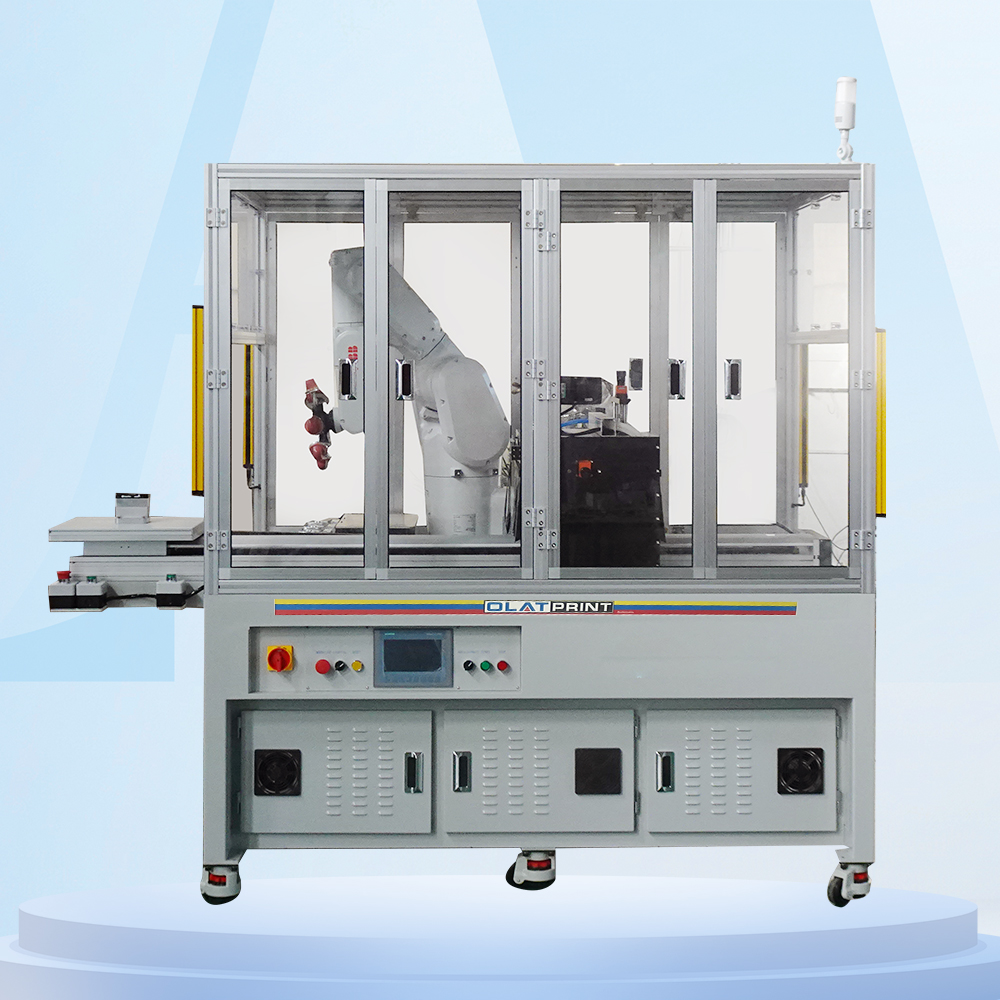

OLAT's six-axis robot fully automatic servo pad printing machine achieves multi-position precision printing through the following core technologies:

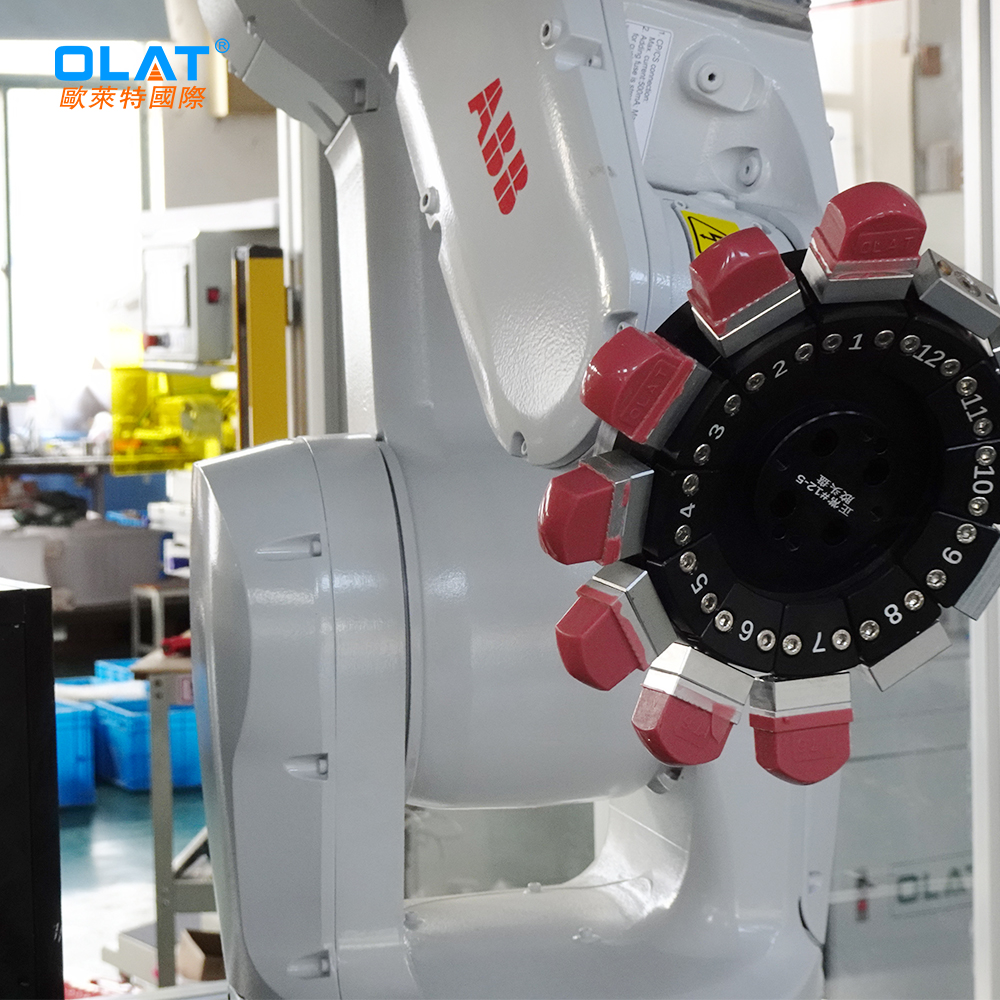

Six-axis robot collaborative control
Using the Japanese Panasonic servo drive system (750W print head drive + 400W steel plate drive), combined with Mitsubishi touch screen programming control, the manipulator can achieve ±180° multi-angle free positioning, adapting to the complex printing needs of curved surfaces and special-shaped parts (such as mobile phone glass, bottles and cans).
Intelligent positioning system
Infrared positioning technology: real-time calibration of printing position, error ≤0.01mm
CNC fine-tuning slide: realizes X/Y-axis precision displacement through gear synchronous transmission, supporting micron-level adjustment during multi-color overprinting
Pneumatic auxiliary device: FESTO/SMC components are used to stabilize the workpiece, and an inflatable ejector pin is used to fix the soft material
Dynamic printing parameter configuration
Independently adjust the X/Y/angle parameters of each oil pan seat, supporting 5-6 color overprinting
The pad printing head is equipped with a pressure sensing module that automatically adapts to different material surfaces (metal/plastic/ceramic)
The UV curing system is linked with the printing action to achieve efficient production that is ready to print and dry.
Security and Stability Guarantee
The grating ruler monitors the movement trajectory of the robotic arm in real time.
The servo module workbench has a self-locking function to prevent shifting deviations
Abnormal vibration triggers a closed balancing device to ensure overprinting accuracy
This equipment has been used in automated production lines in industries such as automotive electronics and toys. Its six-degree-of-freedom robotic arm design can replace multiple traditional single-axis equipment, increasing overall efficiency by more than 40%.
